Description

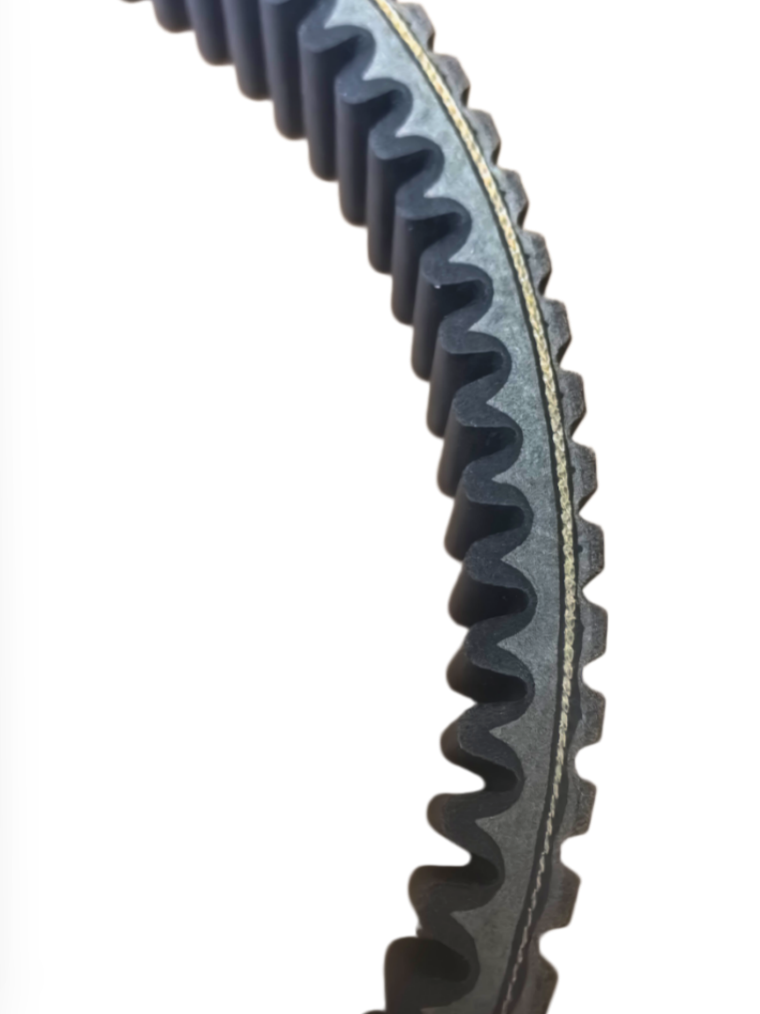

Belts for small scooters and agricultural machinery, the features as below:
Variable speed belts for small scooters and agricultural machinery
Excellent flexibility and resistance to lateral pressure
Excellent tracking of speed variations for smooth transmission
CVT provides excellent acceleration
A variety of specifications are available depending on usage conditions

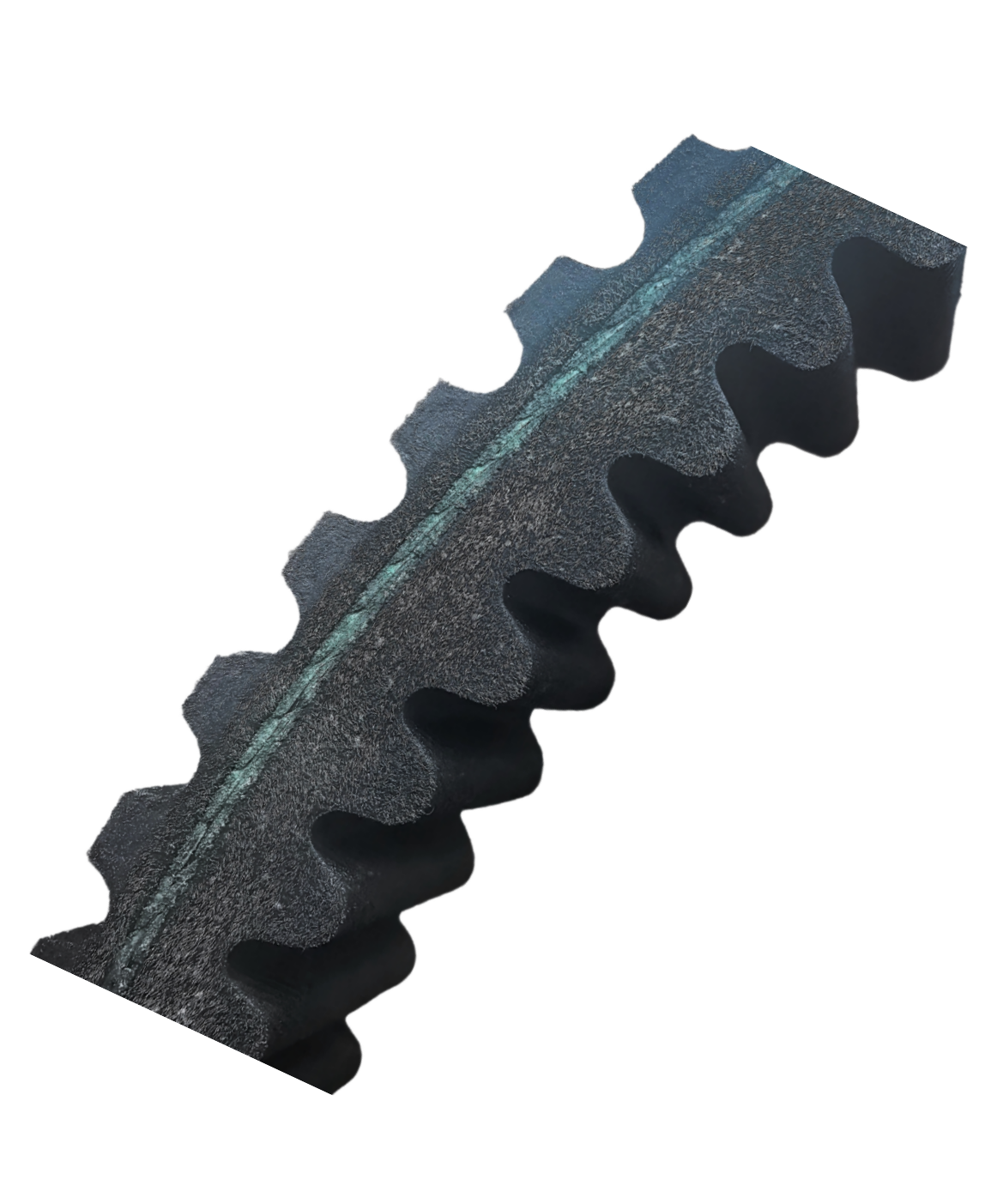

For dune buggies, large scooters snow mobiles, micro cars etc , there need double cogged scooter belts, which are super high performance CVT belt, the features as below:
Can be used in high load applications
Highly resistant to lateral pressure
Outstanding durability in harsh operating conditions
A variety of specifications are available depending on usage conditions
CVT belts are measured in 3 dimensions. For example, here is what the numbers of a 669-18-30 belt actually mean:
669 = The Pitch Length of the belt in millimeters
18 = The Width of the belt in millimeters
30 = The Angle of the teeth on the interior of the belt
| NO. | SIZE |
| 1 | 1016*15 |
| 2 | 1085*13 |
| 3 | 1095*13 |
| 4 | 1140*13 |
| 5 | 567*18 |
| 6 | 580*18 |
| 7 | 600*10 |
| 8 | 623*10 |
| 9 | 641*11 |
| 10 | 641*15.5 |
| 11 | 641*17 |
| 12 | 642*15.2 |
| 13 | 653*10 |
| 14 | 664*14 |
| 15 | 664*16.5 |
| 16 | 666*16.8 |
| 17 | 667*18 |
| 18 | 669*18 |
| 19 | 674*14.5 |
| 20 | 677*17.7 |
| 21 | 680*10 |
| 22 | 680*17 |
| 23 | 700*10 |
| 24 | 700*15 |
| 25 | 708*17 |
| 26 | 709*17.5 |
| 27 | 710*17 |
| 28 | 713*10 |
| 29 | 729*17.5 |
| 30 | 730*18 |
| 31 | 733*15 |
| 32 | 738*16.5 |
| 33 | 743*20 |
| 34 | 745*16 |
| 35 | 748*15 |
| 36 | 751*20.5 |
| 37 | 752*15 |
| 38 | 760*19.5 |
| 39 | 760*22 |
| 40 | 762*22 |
| 41 | 769*18 |
| 42 | 776*17.5 |
| 43 | 778*22 |
| 44 | 788*17 |
| 45 | 800*15.5 |
| 46 | 802*16.5 |
| 47 | 810*17.5 |
| 48 | 813*22 |
| 49 | 815*19 |
| 50 | 815*20 |
| 51 | 817*17 |
| 52 | 818*19 |
| 53 | 828*22.5 |
| 54 | 835*20 |
| 55 | 842*10 |
| 56 | 842*20 |
| 57 | 847*22 |
| 58 | 861*17 |
| 59 | 880*17 |
| 60 | 900*22 |
| 61 | 687*11 |
| 62 | 690*18 |
| 63 | 789*16 |
| 64 | 792*16.6 |
| 65 | 799*19 |
