Description

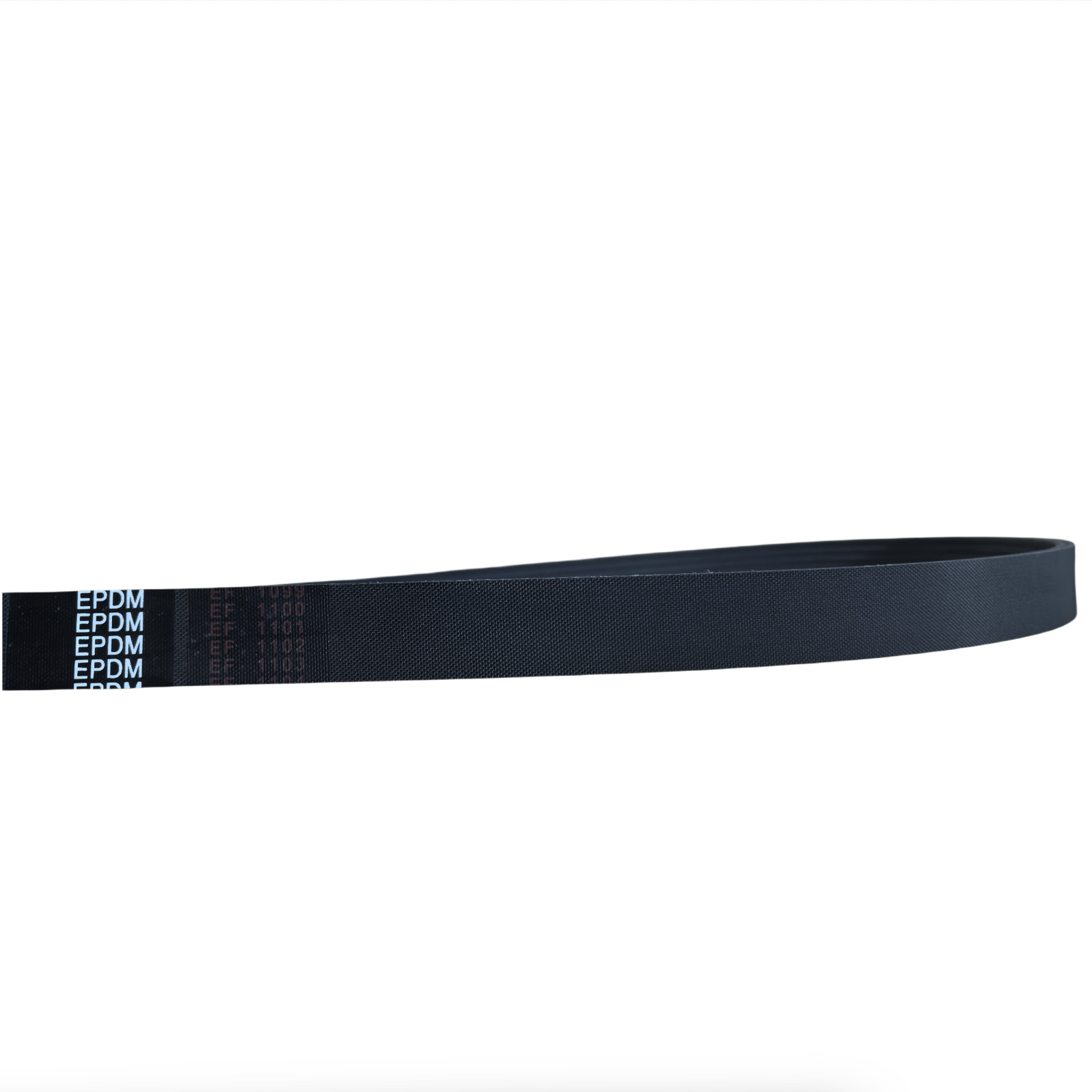

Poly rib belt surface can be normal and rough top surface.
Features:
Heat, oil resistant & antistatic
High transmission power, 30% higher power than the ordinary v belts given the same space occupation.
Low vibration, low heat generation and stable operation.
Highly flexible, noise free & smooth running
Temperature range: -25ºC to +110°C
High maximum belt speed up to 50m/s
Speed ratios over 1 : 30 are possible
Fiber reinforced ribs for excellent wear resistance and high modulus,
Low stretch tensile member for added strength and dependability, smooth running for minimal vibration at high speeds
Applications:
The smallest profile PH is used in miniature drives and the next larger PJ in household equipment drives. The profile PK is mainly used in automotive applications and also used in industrial applications, while the larger profiles PL and PM are used in industrial and agricultural applications
House Keeping Electrical Appliances : Dryers, Health keeping equipments.
Work Tools : Harvester combines, Power driven sprayers and Engines for work tools.
Machine Tools : N C lathes, Milling machines, Drilling machines and Grinding machines.
Industrial Machines : High speed Printing Machines, Flour Grinders, Agitators, Air blowers, Generators, P U Compressors.
Others : Broadcasting Equipment Drives & Hovercrafts.
Product Dimensions:
| Type | Rib Width mm |
Thickness mm |
No.of ribs |
Angle Deg |
Production Range mm |
| PH | 1.6 | 3 | 2-100 | 40 | 225-3573 |
| PJ | 2.34 | 4 | 2-405 | 40 | 254-3589 |
| PK | 3.56 | 4.7 | 2-132 | 40 | 600-4500 |
| PL | 4.7 | 10 | 2-100 | 40 | 787-8096 |
| PM | 9.4 | 17 | 2-100 | 40 | 432-18000 |
