Description

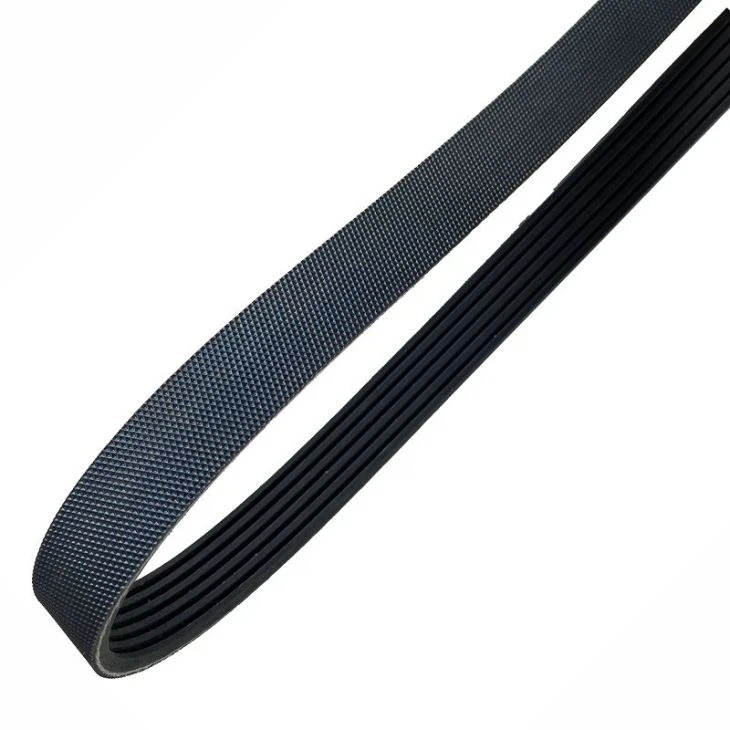

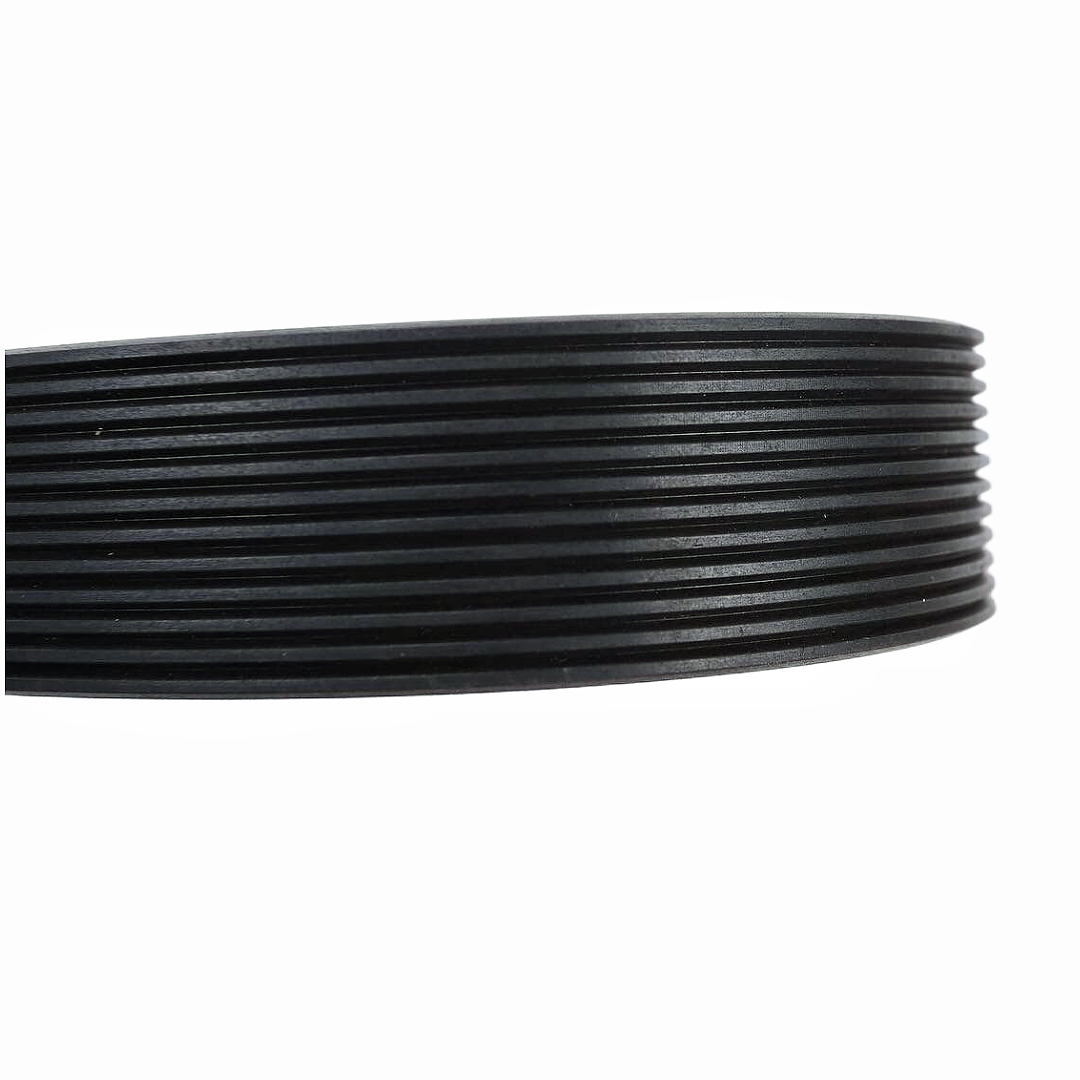

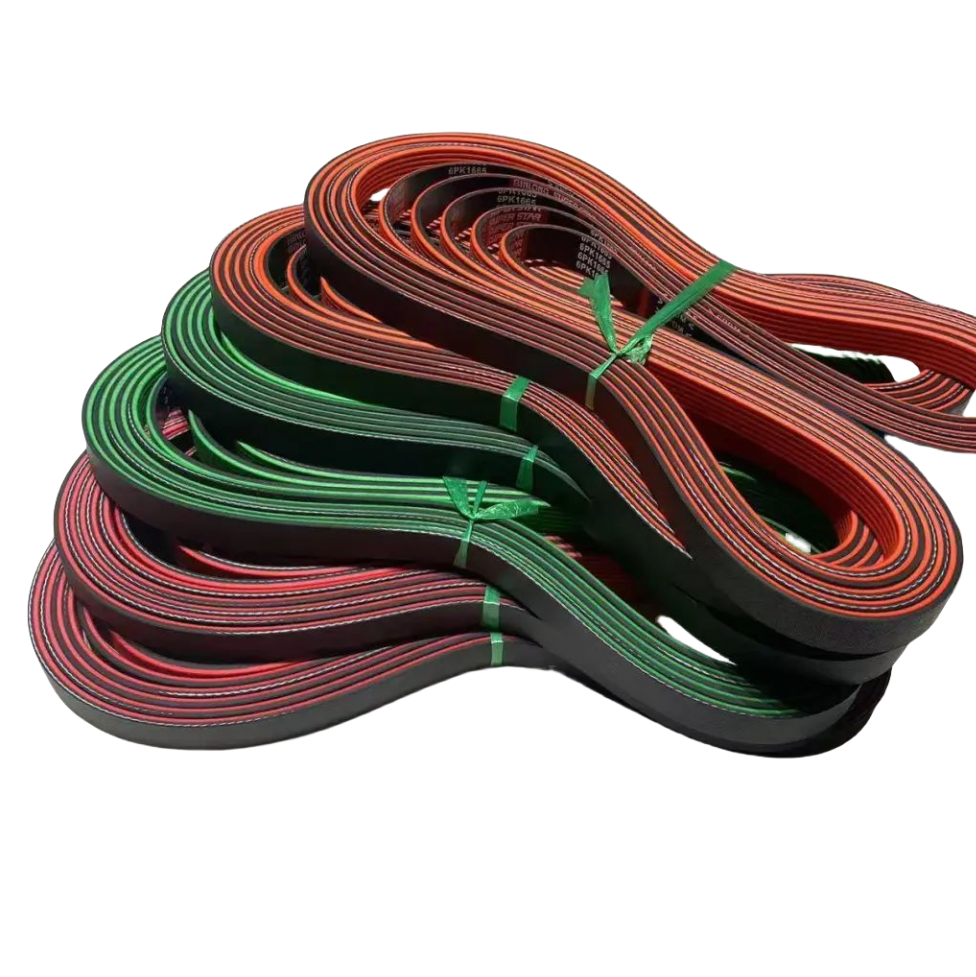

This removes the need for tensioning devices with a simple and trouble-free belt installation. Our stretch belts are uniquely designed with the latest technology in EPDM compounds and tensile cord. The cord is designed to elongate and stretch during installation but recover to maintain proper tension. The belts are slightly shorter than fit length, so once instatlled, they automatically achieve the proper tension and maintain that tension over the life of belt.
Features:
Easy assembly on the production line
Good shock load resistance due to high elasticity of belt
Assembly is possible on fixed centres with no need for adjustment for belt tensioning
Optimized power transmission
Smooth, quiet operation
Reduced maintenance and labor needs
Cost reduction through lower drive cost
Absorption of overloads and intermittent loads
Applications:
Digital controlled lathes
Trucks
Washing machines
Buses
Product Dimensions:
| Profile | Top Width mm | Thickness mm | Length Range mm |
| PH | 1.6 | 3 | 85-5000 |
| PJ | 2.34 | 3.9 | 85-5000 |
| PK | 3.56 | 4.7 | 495-4145 |
| PL | 4.7 | 10 | 787-6096 |
| PM | 9.4 | 17 | 2286-15625 |
| EPH | 1.6 | 3 | 85-2500 |
| EPJ | 2.34 | 3.9 | 85-2500 |
Note: Further sizes upon request.
